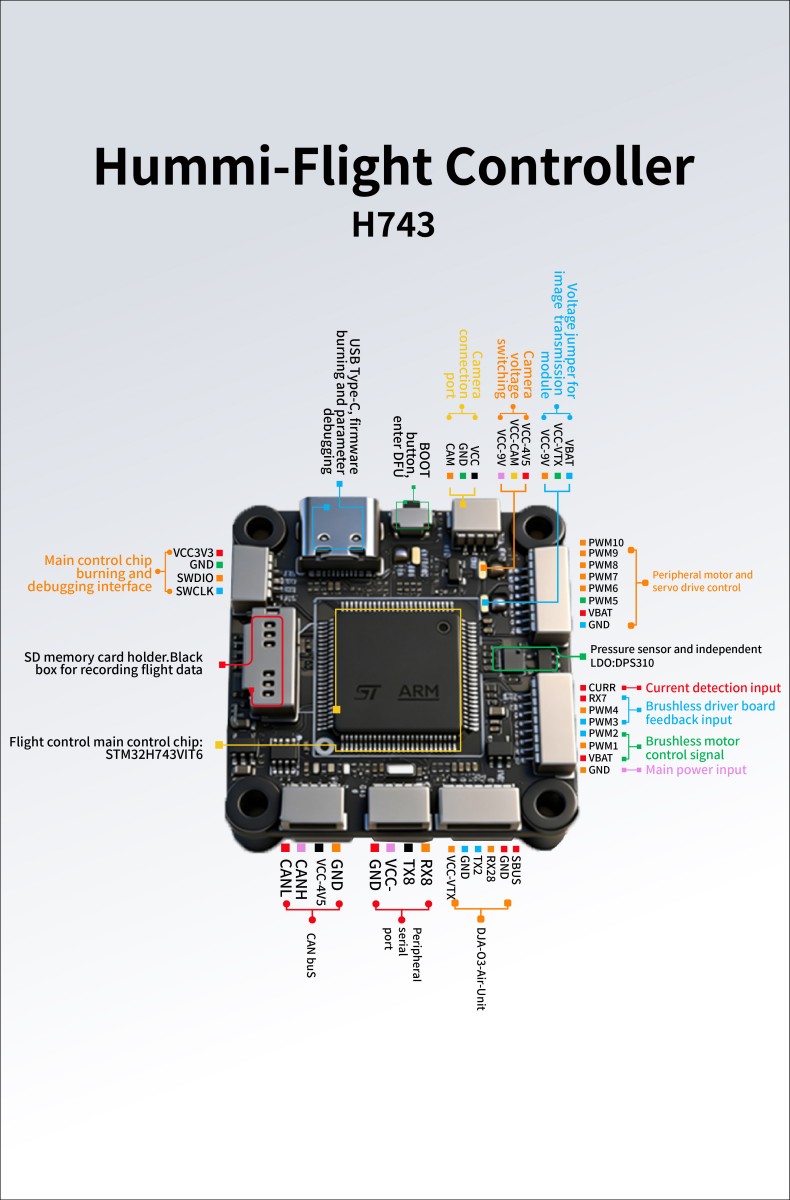

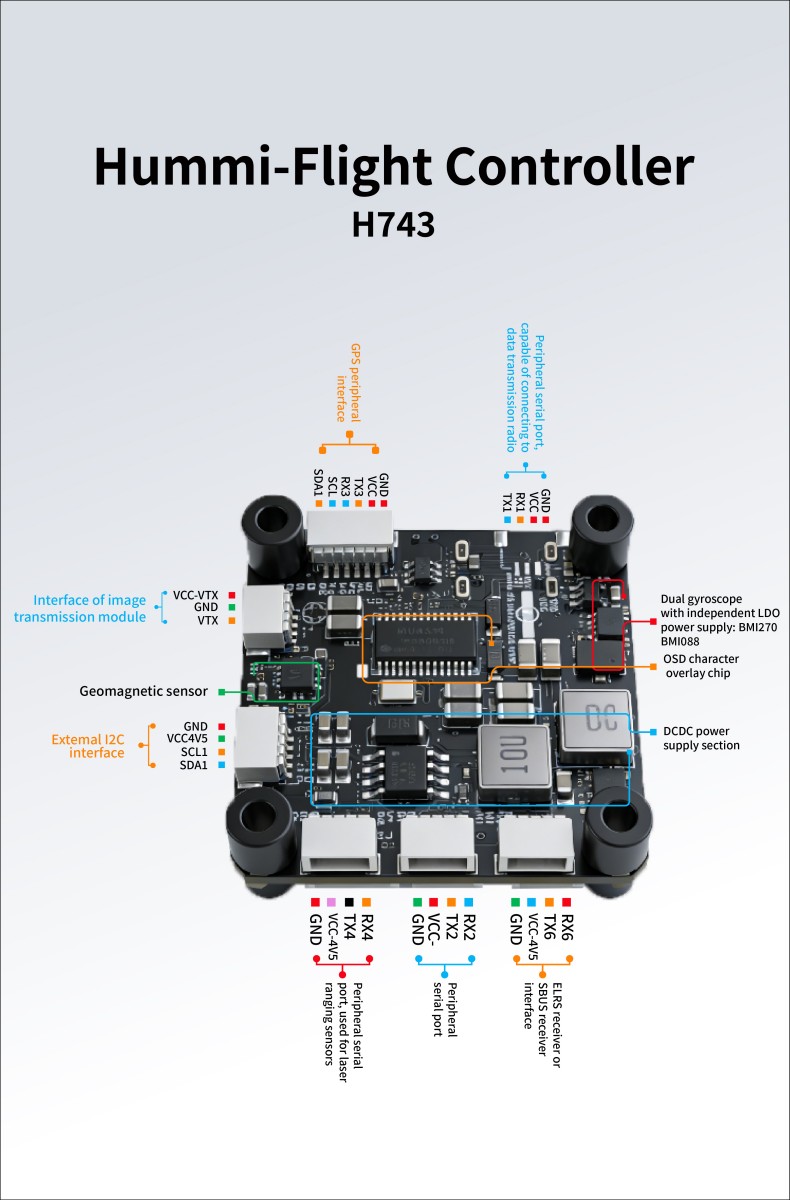

Hummi_Flight Controller H743

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Gram

FC Specifications
Memory	1MB SRAM + 2MB Flash
Processor	STM32H743 (Cortex-M7@480MHz, Dual FPU)
IMU	BMI270 (SPI, 32kHz gyro)+BMI088 (6.4kHz)
Barometer	DPS310{Pressure sensor precision: ±0.005hPa (or ±0.05 m)(high precision mode)}
Connectivity	7UART / 10PWM / 1CAN / 1I2C
Blackbox Storage	TF card (recommended 4GB~32GB)
Input Voltage	2S-8S LiPo (12.6V-33.6V)
BEC Outputs	9V@5A + 5V@5A (Isolated)

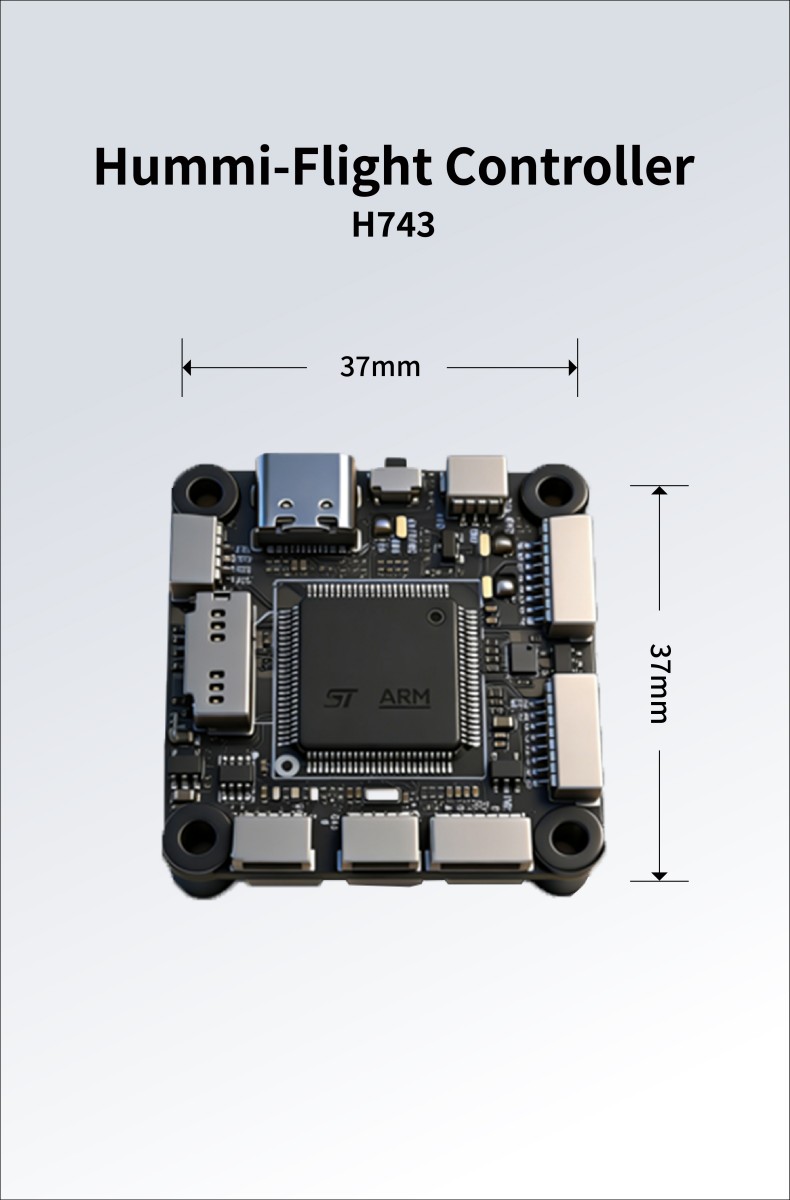

PCB Board Size	37×37mm (30.5×30.5mm mounting)
FPV Drone Specifications
weight	11g
