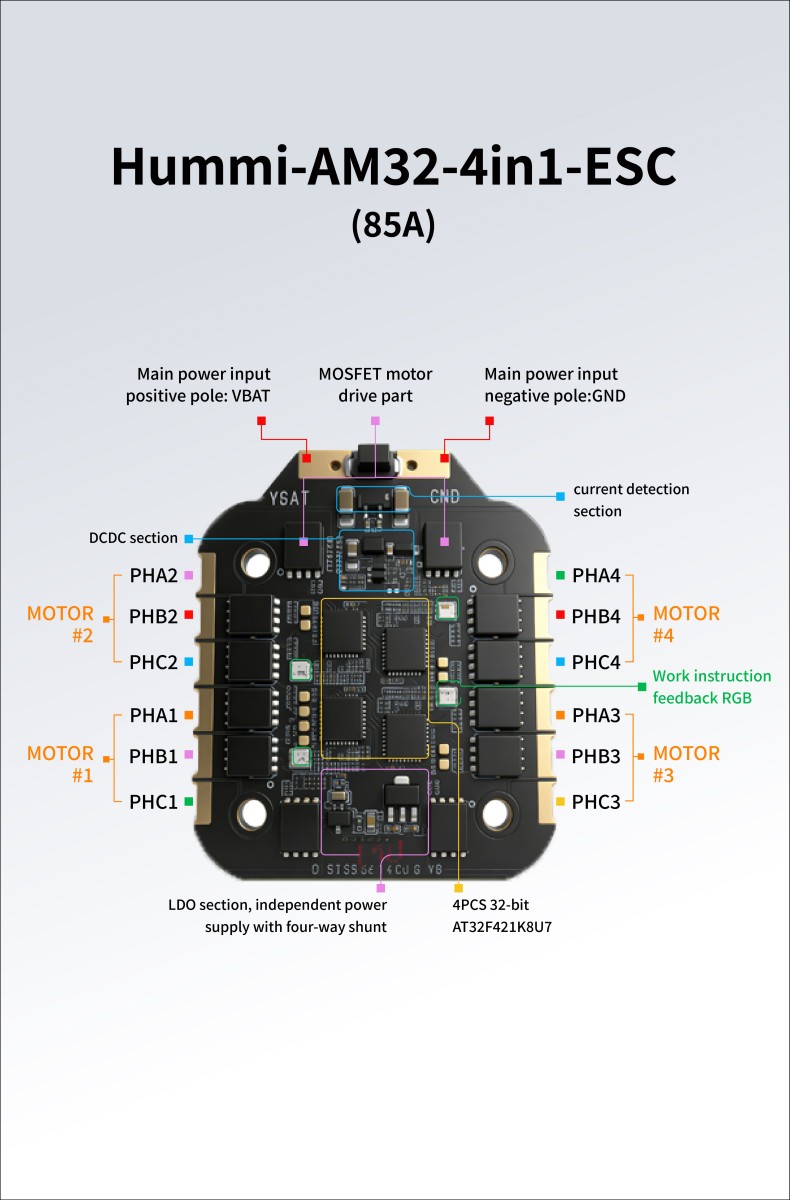

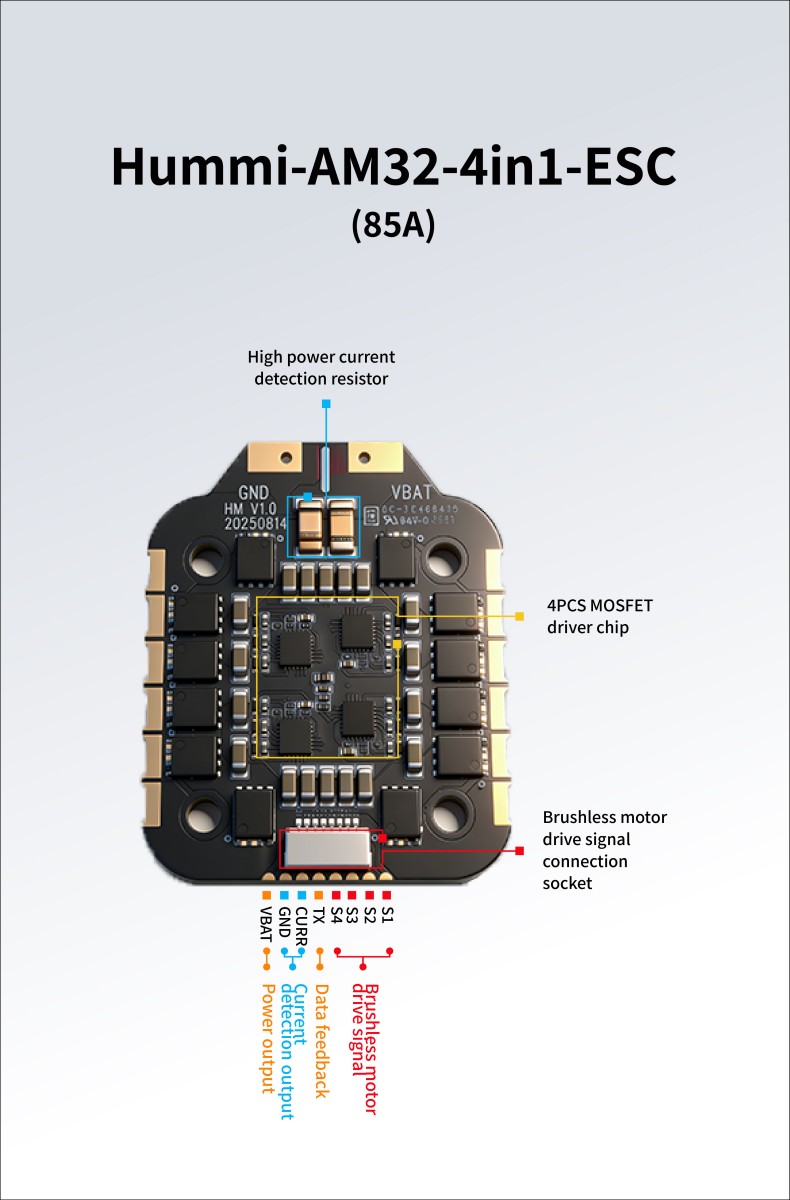

Hummi_AM32_4in1_ESC（85A）

Hummi_AM32_4in1_ESC（85A）

Hummi_AM32_4in1_ESC（85A）

{{ product.price_format }}

{{ product.origin_price_format }}

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Gram

{{ variable.name }}

{{ value.name }}

Product Details Attribute

ESC Specifications
Continuous Current	85A/channel
Peak Current	100A（<10s）
Input Voltage	7.4V ～ 29.6V (2-8S Lipo)
Main Control Chip	AT32F421K8U7
ESC Telemetry	yes
Onboard Current Meter	yes
Protocol	BDShot/DShot 150/ 300/ 600/1200 ; MultiShot/ OneShot /PWM etc
PCB Board Size	56 mm x 46 mm x 9mm
Mounting Holes	30.5mm x 30.5mm
FPV Drone Specifications
weight	15.6g
